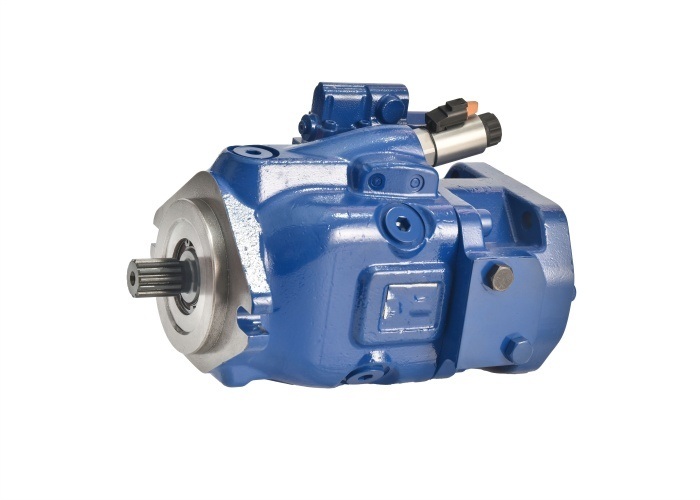

53R-VUC12K24 A10VO85EP1 Radial Piston Pump Open Loop Obstruction Pump

Name: 53R-VUC12K24 A10VO85EP1 Radial Piston Pump Open Loop Obstruction Pump
Brand: Shandong Keystone Hydraulic Co.,Ltd
SKU: A10VO85EP1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: KERSTERN

Certification: SIO9001

Model Number: A10VO85EP1

Document: A10VO85EP1.pdf

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Packaging Details: Wooden boxes and cartons

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5,000 units per month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Hydraulic Radial Piston Pump, Industrial Machinery Radial Piston Pump, Mobile Equipment rotary piston hydraulic motor


Type:	Positive Displacement Pump，main Pump	Output Volume:	85ml/r
Material:	Cast Iron	Standard Or Nonstandard:	Standanrd
After Warranty Service:	Online Support	Drive Type:	Hydraulic
Application:	Hydraulic Systems, Industrial Machinery, Mobile Equipment	Mounting Type:	Flange

Type:	Positive Displacement Pump，main Pump
Output Volume:	85ml/r
Material:	Cast Iron
Standard Or Nonstandard:	Standanrd
After Warranty Service:	Online Support
Drive Type:	Hydraulic
Application:	Hydraulic Systems, Industrial Machinery, Mobile Equipment
Mounting Type:	Flange

Description

53R-VUC12K24 A10VO85EP1 Radial Piston Pump Open Loop Obstruction Pump

Radial Piston Pump A10VO85EP1/53R-VUC12K24 Open-loop Obstruction Pump

Product Specifications

Attribute	Value
Type	Positive Displacement Pump, main pump
Output volume	85ml/r
Material	Cast iron
Standard Or Nonstandard	Standard
After Warranty Service	Online Support
Drive Type	Hydraulic
Application	Hydraulic Systems, Industrial Machinery, Mobile Equipment
Mounting Type	Flange

Technical Description

The A10VO85EP1D is a high-performance radial piston pump designed for demanding industrial applications. This main pump delivers reliable performance with precise output volume control.

Assembly Precautions

Ensure assembly surfaces remain free of burrs and contaminants
Apply dust-proof treatment to all exposed holes after assembly
Treat input shaft and flange with rust inhibitor
Protect nameplate and mounting surfaces during painting processes

Operation Guidelines

Avoid strong impacts to pump transmission shaft during transport
Pre-fill casing with clean hydraulic oil through exhaust port before operation
Maintain hydraulic oil cleanliness at NAS level 9 or better

Detailed Technical Specifications

Model number	A10VO85EP1D/53L-VUC12K68
Output volume	85ml/r
Rotation direction	Levorotation
Rated speed	2500rpm
Maximum speed	3000rpm
Rated pressure	250bar
Maximum pressure	315bar
Cut off pressure	280bar
Control mode	Output volume control of electrical ratio (DC) 12V, Deutsch DT04-2P connection
Input shaft	14T 12/24DP ANSI B92.1a
Mounting flange	SAE J744-32-4; seam allowance diameter 127mm, seam allowance depth 12.7mm
Through shaft drive	Mounting flange: SAE J744101-2(B); Internal spline: 13T 16/32DP
Housing oil return port	ISO 1192611/16-12UN-2B
Oil inlet	SAE 21/2", M12×1.75, thread depth 21
Oil outlet	SAE 11/4", M14×2, thread depth 25

Key Features

High efficiency: Minimizes energy loss for reduced operating costs
Low noise operation: Advanced design for quiet performance in sensitive environments
Wide speed range: Adaptable to various applications from low to high speeds
High torque capacity: Handles heavy loads and demanding applications
Compact design: Space-saving footprint for easy system integration
Extended service life: Durable construction reduces maintenance requirements
Easy maintenance: Accessible components simplify servicing

The A10VO85EP1 hydraulic pump is widely used across construction, manufacturing, mining, and transportation industries, particularly in applications requiring high torque, variable speed, and quiet operation.
