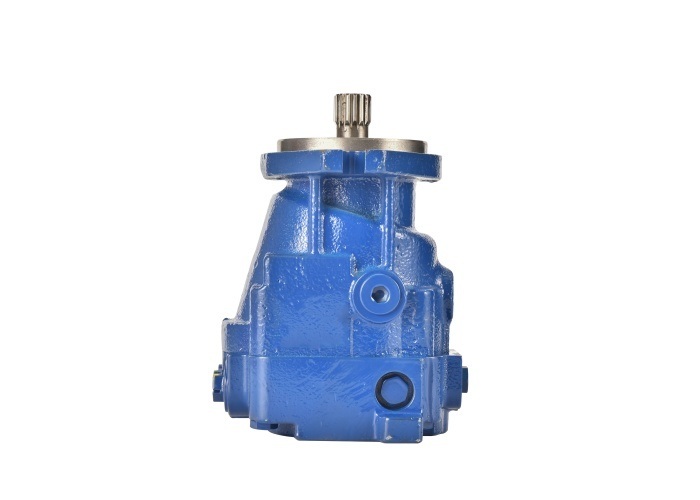

Industrial High Speed Hydraulic Motor FM45 Volumetric Efficiency

Name: Industrial High Speed Hydraulic Motor FM45 Volumetric Efficiency
Brand: Shandong Keystone Hydraulic Co.,Ltd
SKU: FM45
Availability: InStock

Product Details

Place of Origin: China

Brand Name: KERSTERN

Certification: SIO9001

Model Number: FM45

Document: FM45.pdf

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Packaging Details: Wooden boxes and cartons

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5,000 units per month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Industrial high speed hydraulic motor, FM45 high speed hydraulic motor, Cast Iron high torque hydraulic pump


Product Name:	FM45 Quantify Motor	Application:	Various Industries, Construction, Manufacturing, Mining, Transportation
Usage:	Hydraulic Piston Pump	Power:	Hydraulic
Fuel:	Hydraulic Oil	Structure:	Piston Pump
Standard Or Nonstandard:	Standard	Material:	Cast Iron
Color:	According To Customer's Requirement,customize,black,Transparent	Warranty:	1 Year,12 Months
Type:	Hydraulic Motors	Feature:	High Efficiency,Long Life,High Quality

Product Name:	FM45 Quantify Motor
Application:	Various Industries, Construction, Manufacturing, Mining, Transportation
Usage:	Hydraulic Piston Pump
Power:	Hydraulic
Fuel:	Hydraulic Oil
Structure:	Piston Pump
Standard Or Nonstandard:	Standard
Material:	Cast Iron
Color:	According To Customer's Requirement,customize,black,Transparent
Warranty:	1 Year,12 Months
Type:	Hydraulic Motors
Feature:	High Efficiency,Long Life,High Quality

Description

Industrial High Speed Hydraulic Motor FM45 Volumetric Efficiency

Industrial Hydraulic Pump FM45 Quantify Motor

High-performance hydraulic motor with 95% volumetric efficiency, designed for demanding industrial applications.

Key Specifications

Model Number	FM45 quantify motor
Output Volume	45ml/r
Rotation Direction	Two-way
Rotary Speed	Rated speed: 3300rpm Maximum speed: 4100rpm
System Allowable Pressure	Rated pressure: 290bar Maximum pressure: 345bar

Technical Requirements

Hydraulic oil cleanliness must meet at least 22/18/13 of ISO 4406-1999 standard
Motor housing must be filled with hydraulic oil before operation
Pressure sum at ports A and B must not exceed 70MPa
Oil return port pressure should not exceed 0.52MPa under normal working conditions

Product Attributes

Attribute	Value
Application	Construction, manufacturing, mining, transportation
Usage	Hydraulic Piston Pump
Power	Hydraulic
Fuel	Hydraulic oil
Material	Cast Iron
Warranty	1 Year (12 Months)
Features	High Efficiency, Long Life, High Quality

Key Features

High efficiency: Minimal energy loss for lower operating costs
Low noise operation: Suitable for noise-sensitive environments
Wide speed range: Adaptable to various applications
High torque capacity: Handles heavy loads and demanding applications
Compact design: Easy integration into existing systems
Durable construction: Long service life with reduced maintenance
Easy maintenance: Simple design with accessible components

Mounting Specifications

Mounting Flange	SAE B flange, seam allowance: 101.54-101.6mm Installation flange with two slots: Slot hole diameter 14.3mm, spacing 140.8mm
Output Shaft	SAE 15 teeth spline, diametral pitch 16/32
Main Oil Port	Radial and same side oil port, 1-1/16-12UN-2B
Housing Oil Return Port	7/8-14UNF-2B
Testing Port	M12×1.5
Flush Valve	With flushing valve, flushing damping hole 2×1.4
