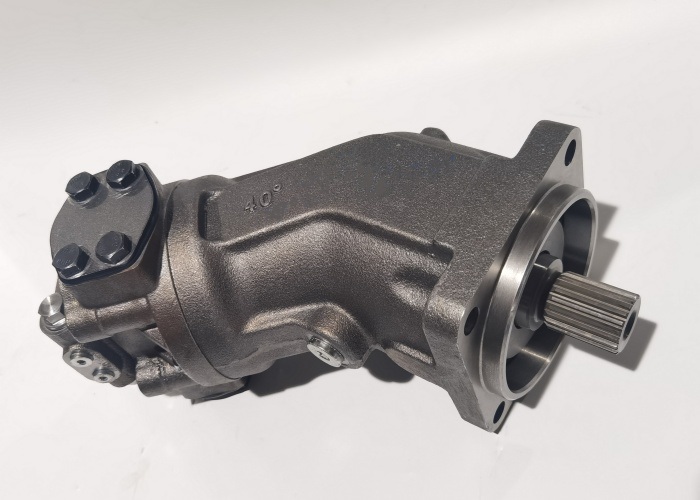

HA2FM Axial Piston Motor for Mining Conveyor Systems

The HA2FM Axial Piston Motor is a high-performance hydraulic motor engineered exclusively for mining conveyor systems. With a maximum pressure rating of 450 bar and a wide displacement range, it is designed to deliver reliable, high-efficiency performance under the toughest mining conditions. The motor’s robust inclined shaft design ensures superior torque output, smooth operation, and long service life, making it the ideal power source for heavy-duty conveyor applications in mining environments.

Applications

• Specifically developed for mining conveyor systems

• Provides continuous, stable, and powerful hydraulic drive

• Suitable for bulk material handling in underground mines, open-pit operations, and processing plants

Advantages

• High Pressure Capacity: Operates at a nominal pressure of 400 bar and a maximum of 450 bar, ensuring reliable performance under heavy loads.

• Wide Displacement Range: Multiple displacements available (5–1000 cm³/rev) to match different conveyor system requirements.

• High Efficiency: Excellent starting efficiency and overall energy efficiency for reduced operating costs.

• Durability: Made with high-strength materials for extended service life in harsh mining environments.

• Optional Integrated Valves: Relief valve, balance valve, and flushing valve available for enhanced system safety and functionality.

• Low Noise & Smooth Operation: Optimized design reduces vibration and noise, ensuring stable conveyor movement.

Technical Specifications

Manufacturing Process

1. Material Selection: High-strength alloy steel and cast iron for maximum durability.

2. Precision Machining: CNC machining ensures tight tolerances and superior performance.

3. Heat Treatment: Improves hardness and wear resistance of internal components.

4. Assembly & Testing: Each motor undergoes strict high-pressure testing to guarantee reliability.

5. Surface Protection: Anti-corrosion coating applied to withstand mining conditions.

Usage Instructions

• Always fill the motor with clean hydraulic oil before operation.

• Maintain oil cleanliness at NAS level 9 or better.

• Ensure proper alignment with the mining conveyor system during installation.

• Avoid dry running or sudden load changes to prevent premature wear.

• Conduct routine inspections of oil temperature, pressure, and filtration system.

After-Sales Service

• Warranty: 12-month warranty against manufacturing defects.

• Spare Parts: Genuine replacement parts available for fast delivery.

• Technical Support: Assistance with installation, commissioning, and troubleshooting.

• Global Service: On-site repair and maintenance available in key mining regions.

FAQ

Q1: Is the HA2FM motor suitable for applications other than mining conveyors?
A1: No. This model is optimized and recommended only for mining conveyor systems.

Q2: Can I select different displacements for my conveyor system?
A2: Yes. The HA2FM offers a wide range of displacements from 5 to 1000 cm³/rev to match system requirements.

Q3: What type of hydraulic oil is recommended?
A3: Use ISO VG46 or VG68 mineral-based hydraulic oil with high cleanliness standards.
