Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: A4VG90
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Application: |
Other,Metering,oil,Sewage,hydraulic Jack Etc |
Pressure: |
High Pressure,Low Pressure,25MPa,less Than 44mpa |
Structure: |
Piston Pump,Single-stage Pump,Diaphragm Pump,Gear Pump,Vane Pump |
Power: |
Hydraulic,Electric,Pneumatic,7.5KW To 75KW,Other |
Fuel: |
Diesel,electric,hydraulic Oil,Other,standard 380V 50Hz 3phase |
Theory: |
Rotary Pump,Centrifugal Pump,Reciprocating Pump,Electromagnetic Pump,Other |
Standard Or Nonstandard: |
Standard |
Warranty: |
1 Year,12 Months |
Material: |
Steel,Aluminum Alloy,Cast Iron,Casting Iron,304SS |
Type: |
Hydraulic Gear Pump,electric Water Pump,Rotary,high Pressure Jet Grouting Pumps,diesel Pump |
Product Name: |
High Pressure Micro Hydraulic Pumps For Logsplitter,hydraulic Diaphragm Metering Pump,Model High Pressure Hydraulic Manual Pumps,High Pressure Hydraulic Hand Pumps,Compression Machine |
Color: |
Black，blue |
Voltage: |
380V,220v/50hz,415V,etc Are All Available,220V |
Oil Capacity: |
2200 Ml,2.2L,901ml |
Feature: |
High Efficiency,Long Life,Waste Water Treatment For House Septic Tank Or Flood,Low Noise |
Application: |
Other,Metering,oil,Sewage,hydraulic Jack Etc |
Pressure: |
High Pressure,Low Pressure,25MPa,less Than 44mpa |
Structure: |
Piston Pump,Single-stage Pump,Diaphragm Pump,Gear Pump,Vane Pump |
Power: |
Hydraulic,Electric,Pneumatic,7.5KW To 75KW,Other |
Fuel: |
Diesel,electric,hydraulic Oil,Other,standard 380V 50Hz 3phase |
Theory: |
Rotary Pump,Centrifugal Pump,Reciprocating Pump,Electromagnetic Pump,Other |
Standard Or Nonstandard: |
Standard |
Warranty: |
1 Year,12 Months |
Material: |
Steel,Aluminum Alloy,Cast Iron,Casting Iron,304SS |
Type: |
Hydraulic Gear Pump,electric Water Pump,Rotary,high Pressure Jet Grouting Pumps,diesel Pump |
Product Name: |
High Pressure Micro Hydraulic Pumps For Logsplitter,hydraulic Diaphragm Metering Pump,Model High Pressure Hydraulic Manual Pumps,High Pressure Hydraulic Hand Pumps,Compression Machine |
Color: |
Black，blue |
Voltage: |
380V,220v/50hz,415V,etc Are All Available,220V |
Oil Capacity: |
2200 Ml,2.2L,901ml |
Feature: |
High Efficiency,Long Life,Waste Water Treatment For House Septic Tank Or Flood,Low Noise |

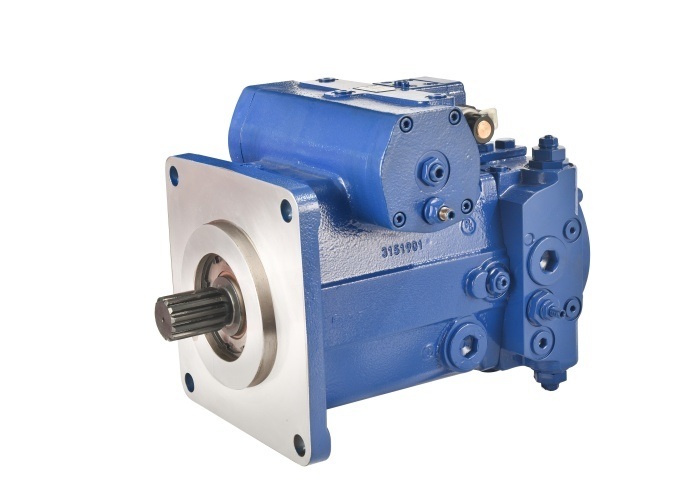

The A4VG90EP3 axial piston hydraulic pump is a high-pressure, variable displacement pump engineered exclusively for hydraulic excavators. Designed for closed circuit systems, it provides outstanding efficiency, reliable performance, and extended service life under heavy-duty excavation tasks. With a maximum speed of 3000 rpm and superior high-pressure capability, the A4VG90EP3 ensures powerful hydraulic output to support digging, lifting, and earthmoving operations in challenging environments.
Hydraulic Excavators: The pump is specifically designed for excavator hydraulic systems, delivering high-pressure power to the boom, arm, bucket, and swing functions.
Optimized to handle continuous heavy-duty cycles, ensuring consistent performance in excavation, trenching, foundation digging, and construction site operations.
High Efficiency: Variable axial piston design reduces energy loss and optimizes hydraulic power output.
High Pressure Performance: Capable of reaching up to 35MPa, supporting demanding excavation requirements.
Durable Structure: Built from steel and aluminum alloy components to withstand harsh construction environments.
Low Noise Design: Ensures improved operator comfort on job sites.
Long Service Life: Integrated oil filtration system enhances reliability and reduces maintenance costs.
| Attribute | Value |
|---|---|
| Model Number | A4VG90EP3DM1/32L-NSD10F07 |
| Displacement | 90 ml/r |
| Work Mode | Closed circuit |
| Rotation Direction | Levorotation |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3300 rpm |
| High Pressure Overflow | 445 bar |
| Cut-Off Pressure | 350 bar (adjustable) |
| Housing Pressure | Max. 2 bar |
| Suction Pressure | Min. 0.8 bar |
| Replenishment Pressure | 25 bar |
| Slippage Pump Displacement | 18 ml/r |
| Control Mode | Electric proportional valve (DC 12V) |
| Filter Precision | 10 μm |
Material Selection: Premium cast steel and aluminum alloy.
Precision Machining: CNC processing ensures strict tolerances.
Heat Treatment: Enhances wear resistance and durability.
Assembly & Testing: High-pressure and performance testing before delivery.
Anti-Corrosion Treatment: Rust-proof coatings for extended reliability.
Fill the pump casing with clean hydraulic oil before operation.
Maintain oil cleanliness at NAS level 9 or better.
Avoid strong impacts to the transmission shaft during transportation.
Prevent hydraulic oil leakage on the outer surface during use.
Conduct regular inspections of filters, oil pressure, and displacement settings.
Warranty: Standard 12-month warranty covering manufacturing defects.
Technical Support: Professional guidance for installation and operation.
Spare Parts: Original replacement parts available for long-term support.
Global Service: Maintenance and repair assistance for international customers.
Q1: Can the A4VG90EP3 be used for other machinery besides excavators?
A1: No. This pump is specifically designed and optimized for hydraulic excavators.
Q2: What type of hydraulic oil is recommended?
A2: ISO VG46 or VG68 hydraulic oil with NAS 9 cleanliness or higher.
Q3: How often should the filter be replaced?
A3: Regularly inspect every 500 operating hours and replace as needed depending on oil quality.
