Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001

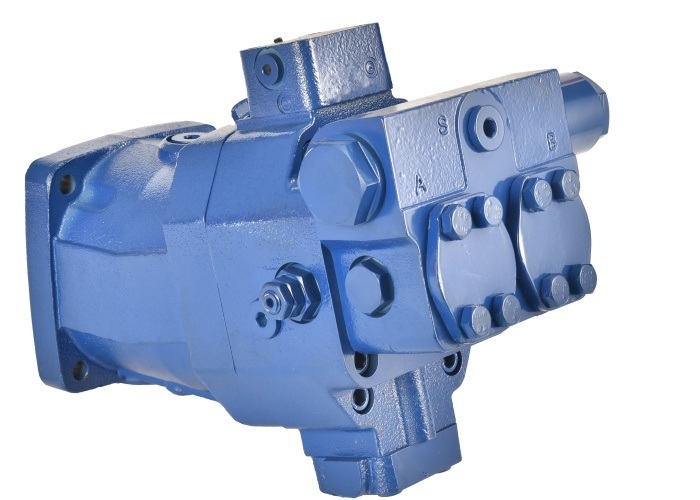

Model Number: A6VM107EP1
Document: A6VM107EP1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Fuel: |
Diesel,Other,oil,Electric,No Fuel |
Application: |
Other,industory,Cryogenic,Hydaulic Pump,for IT24F IT28F IT28G |
Power: |
Hydraulic,Electric |
Pressure: |
High Pressure,Low Pressure |
Structure: |
Piston Pump,Single-stage Pump,vane Pump,Other,Double-stage Pump |
Standard Or Nonstandard: |
Standard,Standard Or Nonstandard |
Warranty: |
1 Year |
Color: |
Blue,Customer's Request,Black,Customer Specifications,green Or As Request |
Material: |
Cast Iron,aluminum Alloy |
Product Name: |
Hydraulic Gear Pump,denison Pump,150MPa Manual Hydraulic Axial Piston Pump,Rexroth Type A7V Hydraulic Piston Pump,Air Vacuum Pump |
Feature: |
High Efficiency,Stable Performance And Long Life |
Name: |
Low Price Piston High-pressure LNG Pump,hydraulic Axial Piston Pump,High Pressure Vane Pump Cartridge Kit |
Package: |
Plywood Case,Neutral Package |
Fuel: |
Diesel,Other,oil,Electric,No Fuel |
Application: |
Other,industory,Cryogenic,Hydaulic Pump,for IT24F IT28F IT28G |
Power: |
Hydraulic,Electric |
Pressure: |
High Pressure,Low Pressure |
Structure: |
Piston Pump,Single-stage Pump,vane Pump,Other,Double-stage Pump |
Standard Or Nonstandard: |
Standard,Standard Or Nonstandard |
Warranty: |
1 Year |
Color: |
Blue,Customer's Request,Black,Customer Specifications,green Or As Request |
Material: |
Cast Iron,aluminum Alloy |
Product Name: |
Hydraulic Gear Pump,denison Pump,150MPa Manual Hydraulic Axial Piston Pump,Rexroth Type A7V Hydraulic Piston Pump,Air Vacuum Pump |
Feature: |
High Efficiency,Stable Performance And Long Life |
Name: |
Low Price Piston High-pressure LNG Pump,hydraulic Axial Piston Pump,High Pressure Vane Pump Cartridge Kit |
Package: |
Plywood Case,Neutral Package |
| Attribute | Value |
|---|---|
| Fuel | Diesel, Other, Oil, Electric, No fuel |
| Application | Other, Industry, Cryogenic, Hydraulic Pump (for IT24F IT28F IT28G) |
| Power | Hydraulic, Electric |
| Pressure | High Pressure, Low Pressure |
| Structure | Piston Pump, Single-stage Pump, Vane Pump, Other, Double-stage Pump |
| Standard or Nonstandard | Standard, Standard or Nonstandard |
| Warranty | 1 Year |
| Color | Blue, Customer's Request, Black, Customer Specifications, Green or as Request |
| Material | Cast Iron, Aluminum Alloy |
| Product Name | Hydraulic Gear Pump, Denison Pump, 150MPa Manual Hydraulic Axial Piston Pump, Rexroth Type A7V Hydraulic Piston Pump, Air Vacuum Pump |
| Feature | High Efficiency, Stable Performance and Long Life |
| Package | Plywood Case, Neutral Package |
| Model Number | A6VM107EP1/63W-VAB017-P-K |
| Maximum Output Volume | 107mlr |
| Set Minimum Output Volume | 30ml/r (adjustable) |
| Rotation Direction | Two-way |
| Rated Speed | 3550rpm |
| Maximum Speed | 5600rpm |
| System Allowable Pressure | Rated pressure: 400bar Maximum pressure: 450bar |
| Housing Pressure | Rated: 3bar Peak value: 5bar |
| Control Mode | Output volume control of electrical ratio, 12V; DEUTSCH DT04-2P-EP04, 2 pin |
| Mounting Flange | SAE flange, seam allowance: 159.96-160mm, Installation hole 4-17.5, installation hole indexing circle 200mm |
| Output Shaft | W40×2×18×9g DIN5480, with speed magnetic ring |
| Main Oil Port | DN25; M12×1.75; 20; SAE J5181, oil ports A and B are located behind the rear |
| Housing Oil Drain Port | M33×2 |
| Testing Port of System Pressure | M18×1.5 |
| Oil Port for Flushing | G1/2 |
| Oil Port of Synchronous Control | M14×1.5 |
| Flushing Flow Rate | 10L/min |
