Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/32
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |

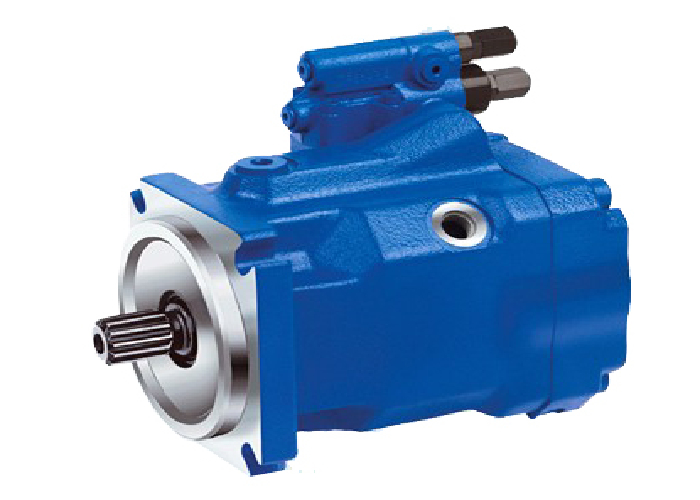

The HA10VS0/32 series axial piston pump is a high-performance variable displacement hydraulic pump designed exclusively for excavators. Operating on the swashplate principle, this pump provides precise flow control, high pressure, and long service life. With a maximum operating speed of 1800 rpm, it ensures reliable and efficient hydraulic power for demanding excavation tasks. Built with cast iron housing and advanced hydrostatic bearing support, the HA10VS0/32 pump guarantees stability, durability, and efficiency in heavy-duty construction environments.
Excavators: Main hydraulic power source for boom, arm, bucket, and swing operations.
Hydraulic Systems in Earthmoving: Ensures smooth, powerful, and precise digging movements.
Heavy-Duty Construction: Optimized for continuous high-pressure work in excavation and loading operations.
Excavator-Specific Design: Engineered exclusively for excavator hydraulic systems.
High Pressure Capacity: Nominal pressure 280 bar, maximum 350 bar, suitable for heavy digging operations.
Variable Displacement: Adjustable flow to match different excavation loads, reducing fuel consumption.
Compact & Durable: Cast iron body ensures strength with minimized weight.
Cavitation Resistance: Enhanced oil absorption ability prevents pump damage in tough conditions.
Long Service Life: Designed for continuous operation with minimal maintenance requirements.
| Parameter | Value |
|---|---|
| Series | HA10VS0/32 |
| Application | Excavators |
| Displacement (cm³) | 45 / 71 / 100 / 140 / 180 |
| Nominal Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Max. Speed (rpm) | 1800 |
| Flow Rate (L/min) | 81 – 324 |
| Power (kW) | 38 – 151 |
| Torque (Nm) | 200 – 802 |
| Weight (kg) | 30 – 78 |
Material Selection – High-strength cast iron for durability.
Precision Machining – CNC machining ensures exact tolerances.
Heat Treatment – Improves component hardness and wear resistance.
Assembly & Testing – High-pressure endurance testing for reliability.
Surface Protection – Anti-rust treatment for extended service life.
Fill the casing with clean hydraulic oil before startup.
Recommended oil: ISO VG46 or VG68 hydraulic fluid.
Maintain oil cleanliness at NAS Class 9 or better.
Avoid dry running or starting without oil.
Regularly inspect system pressure, flow, and filters to ensure stable performance.
Warranty: 12 months against manufacturing defects.
Technical Support: Assistance with installation and maintenance.
Spare Parts: Genuine replacement parts available for long-term support.
Repair Service: Professional global after-sales service team.
Q1: Is the HA10VS0/32 pump compatible with all excavators?
A1: Yes, it is designed specifically for excavator hydraulic systems with 1800 rpm speed.
Q2: What is the maximum operating pressure?
A2: The pump supports up to 350 bar, ideal for heavy-duty excavation.
Q3: Can this pump reduce fuel consumption?
A3: Yes, its variable displacement control reduces unnecessary energy loss, improving fuel efficiency.
