Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: A6VM160
Document: A6VM160.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Product Name: |

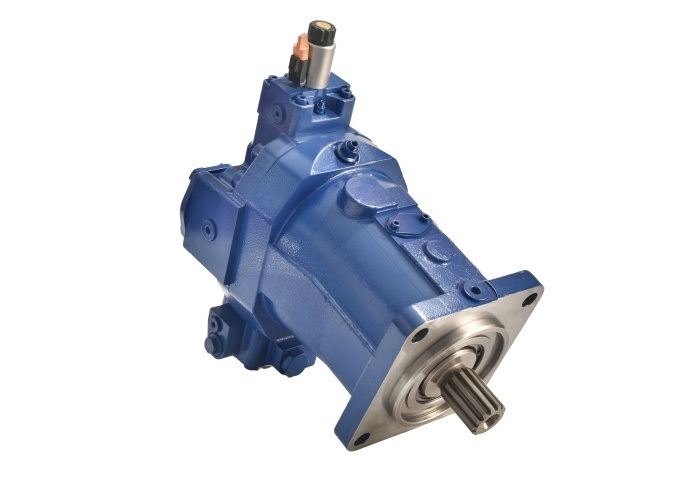

A6VM160EP1 Oblique Axis Motor |
Application: |
Industrial, Agricultural, Or Commercial Use |
Material: |
Metal |
Type: |
Piston Pump |
Sealing Type: |
Mechanical Seal |
Maximum Pressure: |
450bar |
Maintenance: |
Regular Lubrication And Inspection Required |
Size: |
Various Sizes Available |
Weight: |
Depends On Size And Material |
Operating Temperature: |
Depends On Material |
Compatibility: |
Can Be Used With Various Fluids |
Mounting Type: |
Flange Or Threaded |
Product Name: |
A6VM160EP1 Oblique Axis Motor |
Application: |
Industrial, Agricultural, Or Commercial Use |
Material: |
Metal |
Type: |
Piston Pump |
Sealing Type: |
Mechanical Seal |
Maximum Pressure: |
450bar |
Maintenance: |
Regular Lubrication And Inspection Required |
Size: |
Various Sizes Available |
Weight: |
Depends On Size And Material |
Operating Temperature: |
Depends On Material |
Compatibility: |
Can Be Used With Various Fluids |
Mounting Type: |
Flange Or Threaded |
| Attribute | Value |
|---|---|
| Product Name | A6VM160EP1 Oblique Axis Motor |
| Application | Industrial, agricultural, or commercial use |
| Material | Metal |
| Type | Piston Pump |
| Sealing Type | Mechanical seal |
| Maximum Pressure | 450bar |
| Maintenance | Regular lubrication and inspection required |
| Size | Various sizes available |
| Weight | Depends on size and material |
| Operating Temperature | Depends on material |
| Compatibility | Can be used with various fluids |
| Mounting Type | Flange or threaded |
| Model Number | A6VM160EP1/63W-VAB017-P-K |
| Maximum Output Volume | 160ml/r |
| Set Minimum Output Volume | 50ml/r (adjustable) |
| Rotation Direction | Two-way |
| Rated Speed | 3100rpm |
| Maximum Speed | 4900rpm |
| System Allowable Pressure | Rated pressure: 400bar Maximum pressure: 450bar |
| Housing Pressure | Rated: 3bar Peak value: 5bar |
| Control Mode | Output volume control of electrical ratio, 12V; DEUTSCH DT04-2P-EP04, 2pin |
| Mounting Flange | SAE flange; seam allowance: 152.36-152.4mm, Installation hole 4-20.6, Installation hole spacing 161.6mm |
| Output Shaft | 13/4 in 13T 8/16DP, with speed magnetic ring |
| Main Oil Port | DN32; M14X2; 22; SAE J51811/4, oil ports A and B are located behind the rear |
| Housing Oil Drain Port | 15/16-12UN |
| Testing Port of System Pressure | M18×1.5 |
| Oil Port for Flushing | G1/2 |
| Oil Port of Synchronous Control | M14×1.5 |
| Flushing Flow Rate | 40L/min |
