Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10V(S)0/5X
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Model: |
HA10V(S)0/5X |
Power Source: |
Hydraulic |
Application: |
Heavy Machinery |
Type: |
Piston Pump |
Inlet/Outlet Connection: |
Flange/Thread |
Power: |
Ne =1500 Rpm |
Model: |
HA10V(S)0/5X |
Power Source: |
Hydraulic |
Application: |
Heavy Machinery |
Type: |
Piston Pump |
Inlet/Outlet Connection: |
Flange/Thread |
Power: |
Ne =1500 Rpm |

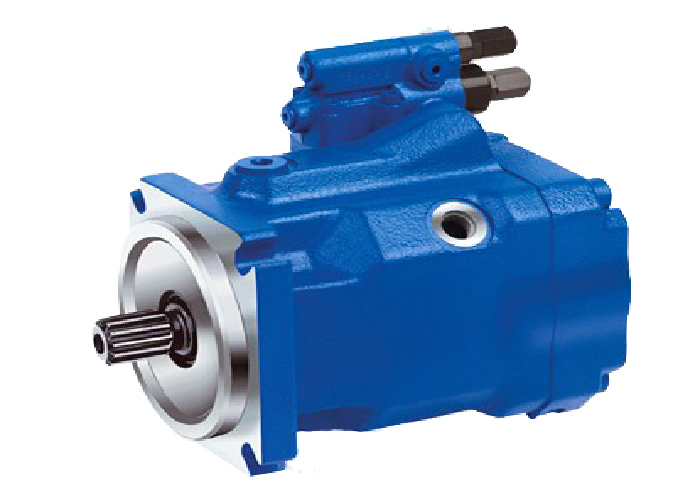

The HA10V(S)0/5X Series Axial Piston Pump is a high-performance hydraulic pump designed specifically for special vehicles. With a maximum speed of 3600 rpm, it is ideal for demanding applications such as fire truck ladder hydraulic systems and port AGV lifting devices. This pump features a variable displacement mechanism, offering superior control and precision in critical applications where reliability and efficiency are paramount.
Fire Truck Ladder Hydraulic Systems: Provides reliable power for the operation of fire truck ladders, ensuring fast and smooth movements for emergency response.
Port AGV Lifting Devices: Powers the lifting and lowering mechanisms of Automated Guided Vehicles (AGVs) at ports, enhancing operational efficiency in material handling.
Special Vehicles: Suited for various other special vehicles requiring precise hydraulic control, such as rescue vehicles and heavy-duty transporters.
High Efficiency: The HA10V(S)0/5X series features excellent oil absorption and energy efficiency, which minimizes operational costs while maximizing output.
Compact and High Power Density: Designed with a compact structure, this pump offers a high power density, making it ideal for installation in space-constrained special vehicles.
Low Noise Operation: Optimized for quiet performance, it ensures minimal noise pollution, which is crucial for operations in sensitive or public environments.
Versatile Control Options: Multiple control methods allow for easy adaptation to various hydraulic systems, ensuring versatility across different special vehicle applications.
High Reliability: Built to withstand tough working conditions, this pump offers excellent performance in high-pressure environments, with maximum pressure reaching 315 bar.
| Parameter | 10 | 18 | 28 | 45 | 60 | 63 | 72 | 85 | 100 |
|---|---|---|---|---|---|---|---|---|---|
| Geometric Displacement (Vg max) | 10.5 | 18 | 28 | 45 | 60 | 63 | 72 | 85 | 100 |
| Maximum Speed (Vg max) n_nom | 3600 | 3300 | 3000 | 2600 | 2700 | 2600 | 2600 | 2500 | 2300 |
| Maximum Speed (Vg < Vg max) n_max | 4320 | 3960 | 3600 | 3120 | 3140 | 3140 | 3140 | 3000 | 2500 |
| Flow Rate (n_nom and Vg max) qv | 37 | 59 | 84 | 117 | 162 | 163 | 187 | 212 | 230 |
| Flow Rate (nE = 1500 rpm) qvE | 15 | 27 | 42 | 68 | 90 | 95 | 108 | 128 | 150 |
Material Selection: High-strength cast iron and corrosion-resistant alloys are used for maximum durability and long service life.
Precision Machining: Components are precisely machined to ensure accurate displacement and pressure ratings.
Heat Treatment: The pump undergoes heat treatment to enhance wear resistance and hardness, ensuring reliability in demanding conditions.
Assembly and Testing: The pump is assembled with great attention to detail and undergoes rigorous pressure testing to ensure optimal performance.
Corrosion Protection: Key parts are coated with anti-corrosion treatments to extend the pump’s operational life, even in harsh environments.
Pre-Operation: Fill the hydraulic system with clean oil to avoid dry running and ensure smooth startup.
Oil Cleanliness: Maintain oil cleanliness at NAS level 9 to ensure efficient operation and prevent pump damage.
System Monitoring: Regularly check for leaks and ensure all components are functioning optimally.
Maintenance: Replace hydraulic oil filters at regular intervals and check for any wear in the pump components.
Warranty: 1-year warranty for any manufacturing defects.
Technical Support: On-site installation, troubleshooting, and operational guidance.
Spare Parts Availability: Original spare parts are readily available for quick replacement, minimizing downtime.
Global Service: Our expert service team provides global support, ensuring efficient and timely repairs.
Q1: Can the HA10V(S)0/5X Series Pump be used for other applications outside of special vehicles?
A1: Yes, this pump is versatile and can be used in various heavy-duty applications, including industrial machinery and mobile equipment, where high pressure and precise control are required.
Q2: What type of hydraulic oil is recommended for use with this pump?
A2: We recommend using ISO VG 46 or VG 68 hydraulic oil for optimal performance and longevity of the pump.
Q3: Is the HA10V(S)0/5X pump compatible with all control systems?
A3: Yes, the pump supports multiple control methods, making it compatible with most hydraulic systems used in special vehicles.
