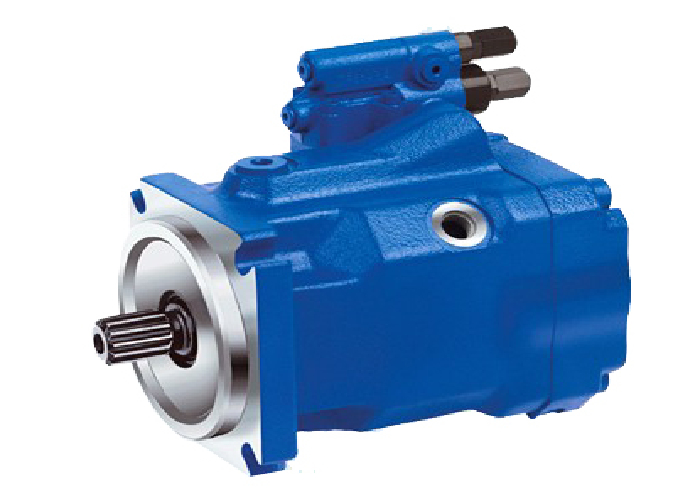

HA10V(S)0/5X Series Axial Piston Pump for Special Vehicles

The HA10V(S)0/5X Series Axial Piston Pump is a swash-plate variable displacement pump designed to deliver reliable hydraulic power in special vehicle applications. With a nominal pressure of 250 bar and a maximum pressure of 315 bar, it ensures stable and efficient performance under demanding conditions. Engineered with compact construction and high power density, this pump is an ideal hydraulic solution for fire truck ladder systems and port AGV lifting devices, where high efficiency, safety, and responsiveness are essential.

Applications

• Fire Truck Ladder Hydraulic Systems: Provides high-pressure hydraulic power to support precise, smooth, and safe ladder movements during firefighting and rescue operations.

• Port AGV Lifting Devices: Delivers reliable lifting power for automated guided vehicles (AGVs), ensuring smooth container handling and transport operations in port logistics.

Advantages

• Variable Displacement Design: Swash-plate control enables stepless adjustment of flow, optimizing energy use based on load requirements.

• High Pressure Capability: Nominal pressure of 250 bar, with a peak of 315 bar, ensures reliable performance for demanding hydraulic tasks.

• Compact & Lightweight: High power density makes it suitable for special vehicle installations with limited space.

• High Efficiency: Excellent oil absorption and low energy loss improve system performance.

• Fast Response & Low Noise: Quick control response and reduced operational noise enhance user safety and comfort.

• Durability: Built with wear-resistant components for extended service life.

Technical Specifications

Manufacturing Process

1. Material Selection: High-strength cast iron for housing and precision alloy steel for rotating parts.

2. Precision Machining: Ensures dimensional accuracy and consistent hydraulic performance.

3. Heat Treatment: Enhances wear resistance and strength of pistons and swash plates.

4. Assembly & Testing: Each pump undergoes strict assembly and high-pressure performance testing.

5. Anti-Corrosion Treatment: Surface protection for reliable operation in harsh environments.

Usage Instructions

• Fill the pump casing with clean hydraulic oil before startup.

• Maintain oil cleanliness at NAS class 9 or better.

• Avoid dry running or operation without oil.

• Regularly inspect hydraulic filters and replace if contaminated.

• Ensure correct installation with proper alignment to avoid shaft damage.

After-Sales Service

• Warranty: 12 months against manufacturing defects.

• Technical Support: Professional assistance for installation, commissioning, and operation.

• Spare Parts: Genuine replacement parts available to ensure long-term system reliability.

• Service Network: Global repair and maintenance support for minimal downtime.

FAQ

Q1: Can the HA10V(S)0/5X be used outside special vehicles?
A1: This version is optimized for special vehicles; other variants are available for industrial or mobile machinery.

Q2: What type of hydraulic oil is recommended?
A2: Use ISO VG 46 or VG 68 mineral-based hydraulic oil with high cleanliness standards.

Q3: How does the variable displacement feature benefit fire trucks and AGVs?
A3: It ensures precise flow control, energy efficiency, and rapid response, critical for safety and automation.
