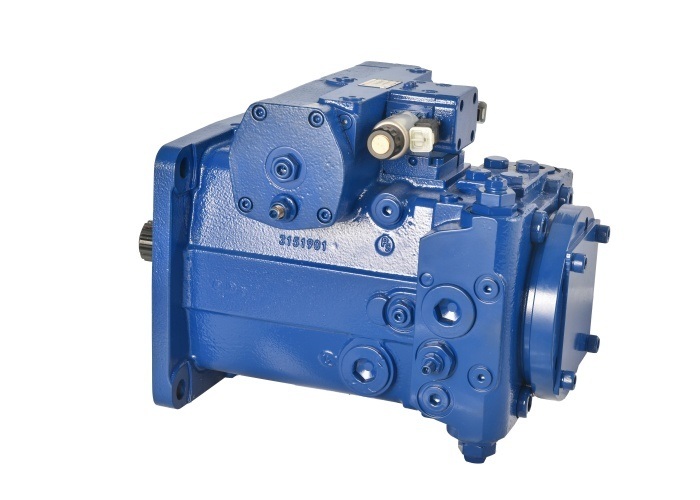

Hydraulic Pump A4VG180EP3 axial piston variable pump concrete pump truck

Name: Hydraulic Pump A4VG180EP3 axial piston variable pump concrete pump truck
Brand: Shandong Keystone Hydraulic Co.,Ltd
SKU: A4VG180
Availability: InStock

Product Details

Place of Origin: China

Brand Name: KERSTERN

Certification: SIO9001

Model Number: A4VG180

Document: A4VG180EP3.pdf

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Packaging Details: Wooden boxes and cartons

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5,000 units per month

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Hydraulic Pump A4VG180EP3 axial piston, concrete pump truck hydraulic pump, variable displacement hydraulic pump with warranty


Name:	A4VG180EP3 Hydraulic Pump	Output Volume:	180ml/r
Rotation Direction:	Levorotation	High Pressure Overflow Valve:	450bar
Filter Preision:	10μm	Fuel:	Diesel,hydraulic Oil,Electric,NO,Gasoline
Structure:	Gear Pump,Piston Pump,Single-stage Pump,Diaphragm Pump,hydraulic Variable Displacement Vane Pump For Shoe Making Machine	Theory:	Rotary Pump,Centrifugal Pump,Electromagnetic Pump,hydraulic Diaphragm Metering Pump,Reciprocating Pump
Standard Or Nonstandard:	Standard	Material:	Steel,Aluminum Alloy,casting,HT300 Casting Body,Cast Iron
Product Name:	Hydraulic Oil Gear Pump,hydraulic Diaphragm Metering Pump,High Pressure Hydraulic Hand Pumps,Short Delivery Time Hydraulic Cylinder Hand Pumps	Warranty:	1 Year,12 Months
Type:	Hydraulic Motors,single Gear Pumps,Hydraulic Gear Products,Hydraulic Pump,Hydraulic Power Units	Feature:	High Efficiency,Long Life,High Quality

Name:	A4VG180EP3 Hydraulic Pump
Output Volume:	180ml/r
Rotation Direction:	Levorotation
High Pressure Overflow Valve:	450bar
Filter Preision:	10μm
Fuel:	Diesel,hydraulic Oil,Electric,NO,Gasoline
Structure:	Gear Pump,Piston Pump,Single-stage Pump,Diaphragm Pump,hydraulic Variable Displacement Vane Pump For Shoe Making Machine
Theory:	Rotary Pump,Centrifugal Pump,Electromagnetic Pump,hydraulic Diaphragm Metering Pump,Reciprocating Pump
Standard Or Nonstandard:	Standard
Material:	Steel,Aluminum Alloy,casting,HT300 Casting Body,Cast Iron
Product Name:	Hydraulic Oil Gear Pump,hydraulic Diaphragm Metering Pump,High Pressure Hydraulic Hand Pumps,Short Delivery Time Hydraulic Cylinder Hand Pumps
Warranty:	1 Year,12 Months
Type:	Hydraulic Motors,single Gear Pumps,Hydraulic Gear Products,Hydraulic Pump,Hydraulic Power Units
Feature:	High Efficiency,Long Life,High Quality

Description

Hydraulic Pump A4VG180EP3 axial piston variable pump concrete pump truck

A4VG180EP3 Hydraulic Pump - Axial Piston Variable Pump for Concrete Pump Trucks

Key Features

High-performance axial piston variable pump
Designed for open hydraulic systems in mobile equipment
Widely used in mining and railway engineering vehicles
Swashplate design with displacement range of 40 to 260ml/rev
Nominal pressure of 350bar
Externally adjustable power control
Through-drive design supports integration with other pumps
Multiple control combinations available
Compact design weighing 101kg with flow rate up to 450L/min

Product Specifications

Model Number: A4VG180EP31/32L-NSD02F071F

Output Volume: 180ml/r

Rotation Direction: Levorotation

Rated Speed: 2500rpm

Maximum Speed: 2900rpm

Rated Pressure: 400bar

Maximum Pressure: 450bar

High Pressure Overflow Valve: 450bar

Filter Precision: 10μm

Control Mode: Electric proportional control (DC) 12V

Input Shaft: 13T 8/16DP ANSI B92.1a

Mounting Flange: SAE J7444

Technical Description

The A4VG180EP3 is a high-performance axial piston variable pump designed for open hydraulic systems in mobile equipment. Featuring a swashplate design, it offers a displacement range of 40 to 260ml/rev and a nominal pressure of 350bar. The externally adjustable power control allows real-time adjustments even during operation.

Its through-drive design supports integration with gear pumps and axial piston pumps, enabling 100% through-shaft power transmission. Multiple control combinations are available to meet diverse equipment action requirements. The pump is compact and optimized for efficiency, significantly reducing equipment energy consumption.

Operating Principle

The A4VG180EP3 operates as an axial piston variable pump, providing adjustable flow rates according to system requirements. The pump consists of a cylinder block with multiple pistons arranged circularly, a swash plate controlling piston angles, and a control valve regulating oil flow.

During operation, pistons move within the cylinder block, creating pressure differences between inlet and outlet ports. The swash plate adjusts piston angles, changing chamber volumes between pistons and cylinder block. This variable displacement design optimizes efficiency by adjusting flow rate to system needs, making it ideal for heavy-duty applications requiring precise control and high performance.

Product Attributes

Attribute	Value
Name	A4VG180EP3 Hydraulic Pump
Fuel	Diesel, hydraulic oil, Electric, NO, Gasoline
Structure	Gear Pump, Piston Pump, Single-stage Pump, Diaphragm Pump
Material	Steel, Aluminum Alloy, Casting, HT300 Casting body, Cast Iron
Warranty	1 Year, 12 Months
Feature	High Efficiency, Long Life, High quality
