Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: A10VO85DR
Document: A10VO85DR.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Power: |
Hydraulic |
Structure: |
Piston Pump |
Theory: |
Axial Flow Pump |
Fuel: |
Hydraulic Oil |
Application: |
Including Construction, Mining, Marine, And Agricultural Machinery. |
Standard Or Nonstandard: |
Standard |
Color: |
Yellow,or OEM,White,natural,as Customer Required |
Warranty: |
1 Year,12 Months |
Material: |
Cast Iron |
Feature: |
High Efficiency,Long Life,Corrosion Resistant,high Pressure |
Power: |
Hydraulic |
Structure: |
Piston Pump |
Theory: |
Axial Flow Pump |
Fuel: |
Hydraulic Oil |
Application: |
Including Construction, Mining, Marine, And Agricultural Machinery. |
Standard Or Nonstandard: |
Standard |
Color: |
Yellow,or OEM,White,natural,as Customer Required |
Warranty: |
1 Year,12 Months |
Material: |
Cast Iron |
Feature: |
High Efficiency,Long Life,Corrosion Resistant,high Pressure |
| Power | Hydraulic |
| Structure | Piston Pump |
| Theory | Axial Flow Pump |
| Fuel | Hydraulic oil |
| Application | Construction, mining, marine, and agricultural machinery |
| Standard or Nonstandard | Standard |
| Color | Yellow, OEM, White, natural, as customer required |
| Warranty | 1 Year, 12 Months |
| Material | Cast Iron |
| Feature | High Efficiency, Long Life, Corrosion Resistant, High Pressure |

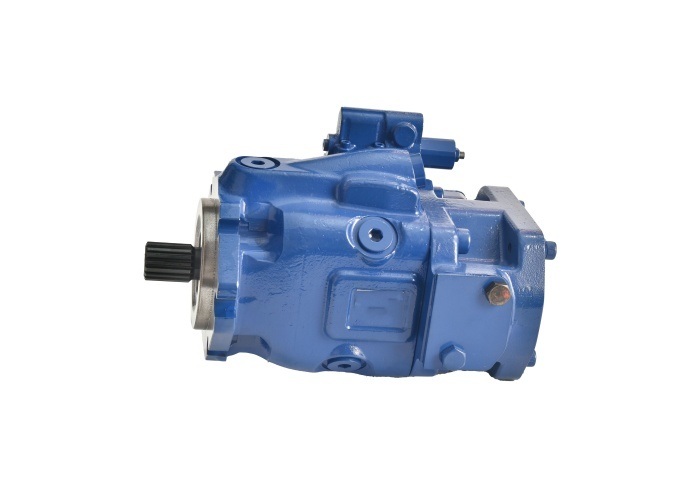

The A10VO85DR is a high-performance axial piston hydraulic pump featuring variable displacement for optimal system efficiency and energy savings. Engineered for demanding applications, it delivers reliable performance in high-pressure environments.
| Model Number | A10VO85DR/53L-VSC12K15 |
| Output Volume | 85ml/r |
| Rotation Direction | Levorotation |
| Rated Speed | 2500rpm |
| Maximum Speed | 3000rpm |
| Rated Pressure | 250bar |
| Maximum Pressure | 315bar |
| Cut Off Pressure | 210bar |
| Input Shaft | 17T 12/24DP ANSI B92.1a |
| Mounting Flange | SAE J744-38-4; seam allowance diameter 127mm, seam allowance depth 12.7mm |
| Through Shaft Drive | Mounting flange: SAE J744127-4(C); Internal spline: 14T 12/24DP |
| Housing Oil Return Port | ISO 1192611/16-12UN-2B |
| Oil Inlet | SAE 21/2", M12*1.75, thread depth 21 |
| Oil Outlet | SAE11/4", M14*2, thread depth 25 |
The A10VO85DR is widely used across multiple industries including:
