Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: A4VG180
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Name: |
A4VG180EP3 Concrete Pump Trucks Hydraulic Pump |
Output Volume: |
180ml/r |
Rotation Direction: |
Levorotation |
High Pressure Overflow Valve: |
450bar |
Filter Preision: |
10μm |
Fuel: |
Diesel,hydraulic Oil,Electric,NO,Gasoline |
Structure: |
Gear Pump,Piston Pump,Single-stage Pump,Diaphragm Pump,hydraulic Variable Displacement Vane Pump For Shoe Making Machine |
Theory: |
Rotary Pump,Centrifugal Pump,Electromagnetic Pump,hydraulic Diaphragm Metering Pump,Reciprocating Pump |
Standard Or Nonstandard: |
Standard |
Material: |
Steel,Aluminum Alloy,casting,HT300 Casting Body,Cast Iron |
Warranty: |
1 Year,12 Months |
Type: |
Hydraulic Motors,single Gear Pumps,Hydraulic Gear Products,Hydraulic Pump,Hydraulic Power Units |
Feature: |
High Efficiency,Long Life,High Quality |
Name: |
A4VG180EP3 Concrete Pump Trucks Hydraulic Pump |
Output Volume: |
180ml/r |
Rotation Direction: |
Levorotation |
High Pressure Overflow Valve: |
450bar |
Filter Preision: |
10μm |
Fuel: |
Diesel,hydraulic Oil,Electric,NO,Gasoline |
Structure: |
Gear Pump,Piston Pump,Single-stage Pump,Diaphragm Pump,hydraulic Variable Displacement Vane Pump For Shoe Making Machine |
Theory: |
Rotary Pump,Centrifugal Pump,Electromagnetic Pump,hydraulic Diaphragm Metering Pump,Reciprocating Pump |
Standard Or Nonstandard: |
Standard |
Material: |
Steel,Aluminum Alloy,casting,HT300 Casting Body,Cast Iron |
Warranty: |
1 Year,12 Months |
Type: |
Hydraulic Motors,single Gear Pumps,Hydraulic Gear Products,Hydraulic Pump,Hydraulic Power Units |
Feature: |
High Efficiency,Long Life,High Quality |

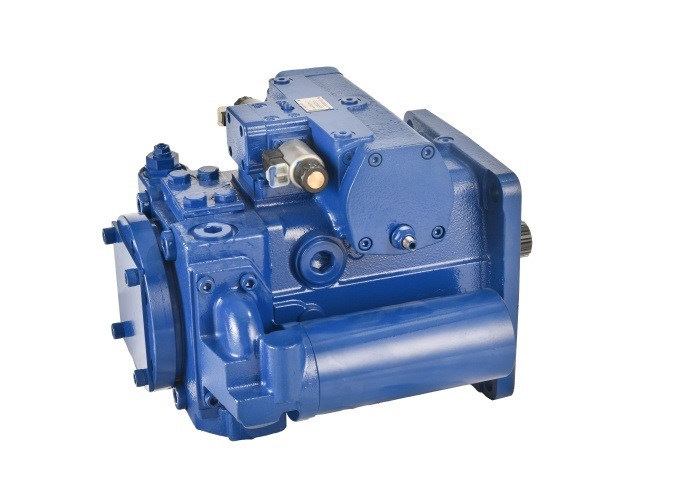

The A4VG180EP3 Hydraulic Pump is a high-performance Axial Piston Variable Pump, specially designed for the demanding requirements of Concrete Pump Trucks. With a displacement of 180 ml/r, a rated speed of 2500 rpm, and a maximum speed of 2900 rpm, this Variable Displacement Hydraulic Pump ensures stable, efficient, and continuous power output. It delivers a rated pressure of 400 bar and a maximum working pressure of up to 450 bar, making it ideal for heavy-duty concrete pumping operations. Compact in design and weighing only 101 kg, it provides flow rates up to 450 L/min and supports multiple control options including electric proportional control, enabling precise hydraulic system management.
Concrete Pump Trucks – Provides reliable high-pressure hydraulic power to support continuous concrete delivery for high-rise construction and large-scale infrastructure projects.
Mobile Construction Equipment – Can be combined with other pumps to meet complex multi-function hydraulic system requirements.
High Pressure Capacity – Rated at 400 bar and reaching up to 450 bar for heavy-duty operations.
Variable Displacement Design – Adjustable swashplate allows flexible flow output, improving energy efficiency.
Energy-Saving & Precise Control – Electric proportional control ensures accurate flow adjustment and reduced energy consumption.
Through-Drive Compatibility – Supports integration with gear pumps and piston pumps, offering high versatility.
Durable & Reliable – Steel and cast iron construction ensures long service life and resistance to wear and corrosion.
| Parameter | Value |
|---|---|
| Model | A4VG180EP3 |
| Displacement | 180 ml/r |
| Rated Speed | 2500 rpm |
| Maximum Speed | 2900 rpm |
| Rated Pressure | 400 bar |
| Maximum Pressure | 450 bar |
| Control Mode | Electric proportional control 12V |
| Input Shaft | 13T 8/16DP ANSI B92.1a |
| Mounting Flange | SAE J7444 |
| Weight | 101 kg |
| Warranty | 12 Months |
Q1: What equipment is the A4VG180EP3 Hydraulic Pump mainly used for?
A: It is primarily designed for concrete pump trucks, but it can also be applied to other high-pressure construction equipment.
Q2: What is the maximum working pressure?
A: The pump can reach a maximum working pressure of 450 bar, ensuring stable performance under heavy loads.
Q3: Can it be combined with other pumps?
A: Yes, the through-drive design allows integration with gear pumps and piston pumps.
Q4: Is maintenance complicated?
A: No, regular inspection and maintaining clean hydraulic oil are sufficient to ensure long-term stable operation.
