Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/32
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural |
Name: |
HA10VS0/32 Series Axial Piston Pump |
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural |
Name: |
HA10VS0/32 Series Axial Piston Pump |

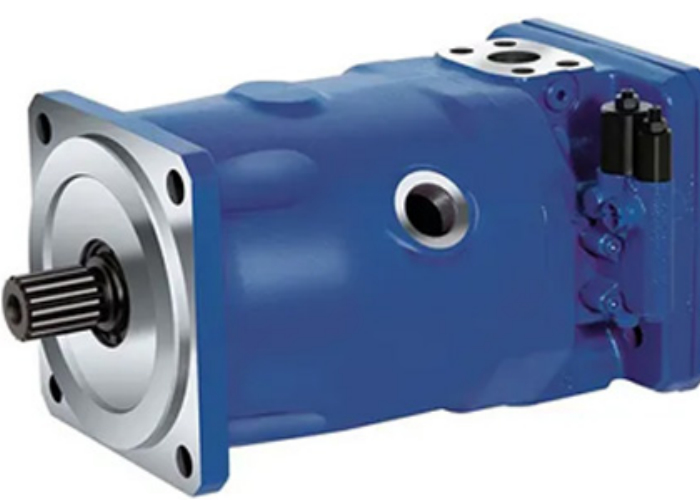

The HA10VS0/32 Series axial piston pump is a high-performance, variable displacement hydraulic pump designed exclusively for construction machinery applications. Operating on the swashplate principle, it delivers reliable hydraulic power for excavators, loaders, and crane hydraulic systems. With a nominal pressure of 280 bar and a maximum pressure of 350 bar, this pump provides exceptional durability, compact design, and energy-efficient operation under the toughest working conditions.
Excavators: Ensures powerful hydraulic output for boom, arm, and bucket movements.
Loaders: Provides stable hydraulic flow for lifting and material handling tasks.
Cranes: Delivers consistent high-pressure performance for hoisting and slewing systems.
High Pressure Capacity: Nominal 280 bar, maximum 350 bar, suitable for heavy-duty construction operations.
Variable Displacement Design: Adjustable swashplate for precise flow control and optimized fuel efficiency.
Compact & Durable: Coaxial cylinder block and cast iron housing provide strength with reduced weight.
Anti-Cavitation Design: High resistance to cavitation, ensuring longer service life and reliability.
Universal Through Drive Shaft: Enables flexible multi-pump configurations for advanced hydraulic systems.
| Size (NG) | 45 | 71 | 100 | 140 | 180 |
|---|---|---|---|---|---|
| Geometric displacement (cm³) | 45 | 71 | 100 | 140 | 180 |
| Max. speed (rpm) | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow rate (l/min) | 81 | 128 | 180 | 252 | 324 |
| Power (kW) | 38 | 59.7 | 84 | 118 | 151 |
| Torque (Nm) | 200 | 317 | 446 | 624 | 802 |
| Weight (kg) | 30 | 47 | 69 | 73 | 78 |
Material Selection: High-strength cast iron ensures durability.
Precision CNC Machining: Guarantees dimensional accuracy and smooth operation.
Heat Treatment: Enhances wear resistance of core components.
Assembly & Testing: Each pump undergoes strict high-pressure testing.
Surface Protection: Anti-corrosion coating extends service life in harsh environments.
Pre-Fill with Oil: Fill casing with clean hydraulic oil before operation.
Oil Quality: Use ISO VG46 or VG68 hydraulic oil; maintain cleanliness at NAS class 9 or better.
Start-Up: Avoid dry running, ensure proper air bleeding from system.
Maintenance: Replace oil filters regularly, check system pressure and flow periodically.
Warranty: 12 months against manufacturing defects.
Technical Support: Professional guidance for installation and troubleshooting.
Spare Parts: Original components available for quick replacement.
Repair Service: Global after-sales service to minimize downtime.
Q1: Is the HA10VS0/32 pump suitable for other industries?
A1: No, this model is specifically designed for construction machinery only.
Q2: What is the maximum working pressure?
A2: The pump supports up to 350 bar.
Q3: Can multiple pumps be connected together?
A3: Yes, thanks to the universal through drive shaft design.
