Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/32
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |

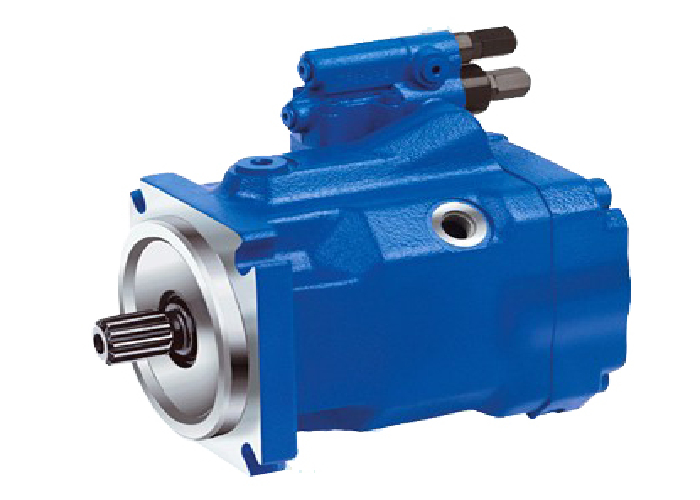

The HA10VS0/32 series open circuit axial piston pump is a high-performance hydraulic power unit designed exclusively for marine machinery applications. With a maximum torque of 800 Nm and robust cast iron construction, it ensures superior durability in harsh maritime environments. This pump adopts a swashplate variable displacement design, offering high efficiency, compact structure, and long service life, making it ideal for demanding deck operations such as lifting equipment and hydraulic winches.
Deck Lifting Equipment: Provides stable high-pressure hydraulic power for cranes, davits, and hoisting systems on ships.
Hydraulic Winches: Ensures smooth, powerful, and reliable operation for mooring, towing, and anchor handling in marine applications.
High Torque Output: Delivers up to 800 Nm, meeting the heavy-duty demands of shipboard equipment.
Marine-Grade Durability: Built with high-strength cast iron and advanced sealing to resist corrosion and seawater exposure.
Variable Displacement Control: Optimizes energy efficiency by adjusting flow to real-time operational requirements.
High Pressure Capability: Rated pressure of 280 bar, with a peak of 350 bar, suitable for continuous heavy-load marine operations.
Compact & Lightweight: Simplified design allows easy installation within confined marine machinery spaces.
Anti-Cavitation Design: Enhanced resistance to cavitation ensures reliable performance under fluctuating load conditions.
| Parameter | Value |
|---|---|
| Series | HA10VS0/32 |
| Circuit Type | Open Circuit |
| Geometric Displacement | 45 – 180 cm³ |
| Rated Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Maximum Torque | 800 Nm |
| Maximum Speed | 1800 rpm |
| Flow Rate Range | 81 – 324 L/min |
| Power Output | Up to 151 kW |
| Material | High-strength Cast Iron |
| Application | Marine Machinery Only |
Material Selection: Marine-grade cast iron chosen for corrosion resistance.
CNC Precision Machining: Ensures high dimensional accuracy.
Heat Treatment & Hardness Testing: Increases wear resistance.
Assembly & High-Pressure Testing: Guarantees durability in marine environments.
Surface Protection: Anti-corrosion treatment applied to withstand seawater exposure.
Always fill the casing with clean hydraulic oil before initial operation.
Recommended oil: ISO VG46 or VG68 marine-grade hydraulic fluids.
Maintain oil cleanliness at NAS class 9 or better.
Avoid dry running and perform air bleeding before start-up.
Inspect hoses, seals, and flow performance regularly.
Warranty: 12 months against manufacturing defects.
Technical Support: Professional installation and commissioning guidance.
Spare Parts: Genuine OEM replacements available globally.
Repair Service: Worldwide after-sales maintenance and on-site service for marine applications.
Q1: Can the HA10VS0/32 be used outside of marine machinery?
A1: No. This model is specifically designed and optimized for marine deck lifting equipment and winches.
Q2: What is the maximum torque output?
A2: The pump delivers a maximum torque of 800 Nm for heavy-duty marine tasks.
Q3: Is it resistant to seawater corrosion?
A3: Yes. It is manufactured with marine-grade materials and treated with anti-corrosion coatings.
