Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/32
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |
Theory: |
Pump |
Standard Or Nonstandard: |
Standard |
Structure: |
Axial Piston Pump |
Fuel: |
Hydraulic |
Material: |
Cast Iron |
Color: |
Blue,Black |
Name: |
HA10VS0/32 Series Axial Piston Pump |

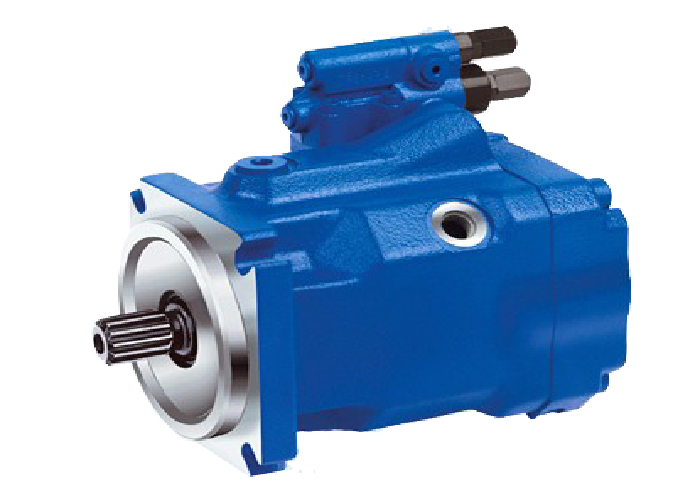

The HA10VS0/32 series axial piston pump is a high-performance hydraulic pump designed exclusively for mining and metallurgy hydraulic systems. Engineered with a swashplate variable displacement design, it delivers superior pressure capacity, reliability, and efficiency in harsh working environments. With a maximum torque of 800 Nm and a compact cast-iron construction, the HA10VS0/32 ensures stable and continuous operation in heavy-duty mining applications, where durability and high output are essential.
Mining Crushers – Provides reliable hydraulic power for crushing and ore processing machines.
Conveyor Systems – Ensures consistent hydraulic energy to drive large-scale material transport.
Smelting Equipment – Maintains stable high-pressure output for metallurgical furnaces and processing machinery.
Heavy-Duty Mining Hydraulics – Designed for demanding operations where continuous high torque and high pressure are required.
High Torque Performance: Maximum torque up to 800 Nm, ensuring powerful output for mining systems.
High Pressure Capability: Nominal pressure of 280 bar, maximum pressure up to 350 bar.
Variable Displacement Control: Adjustable swashplate design provides flexible flow regulation and energy savings.
Anti-Cavitation Resistance: Excellent suction performance reduces risk of cavitation damage.
Compact & Durable Design: Made from high-strength cast iron for long service life.
Mining-Specific Reliability: Optimized for continuous operation in dusty, high-load mining environments.
| Parameter | Value |
|---|---|
| Model | HA10VS0/32 Series |
| Application | Mining & Metallurgy Systems |
| Geometric Displacement | 180 cm³ (max size) |
| Nominal Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Maximum Speed | 1800 rpm |
| Maximum Torque | 800 Nm |
| Flow Rate | Up to 324 L/min |
| Power Output | Up to 151 kW |
| Material | High-strength Cast Iron |
Material Selection – High-grade cast iron ensures durability.
Precision CNC Machining – Guarantees dimensional accuracy and performance.
Heat Treatment – Improves wear resistance and hardness.
Assembly & Testing – Every pump undergoes strict pressure and performance testing.
Anti-Corrosion Coating – Extends service life in mining environments.
Always fill the pump casing with clean hydraulic oil before start-up.
Use high-quality hydraulic oil (ISO VG46 or VG68).
Maintain oil cleanliness at NAS level 9 or better.
Avoid dry running or air entrainment in the system.
Perform regular inspections for pressure, flow, and oil condition.
Warranty: 12 months from delivery.
Technical Support: Professional guidance for installation and commissioning.
Spare Parts: Genuine replacement parts available worldwide.
Maintenance & Repair: Dedicated service team for on-site or remote assistance.
Q1: Is the HA10VS0/32 suitable for applications outside mining?
A1: No, this pump is engineered specifically for mining and metallurgy hydraulic systems.
Q2: What is the maximum torque capability?
A2: The pump delivers up to 800 Nm, ideal for heavy-duty mining machinery.
Q3: What maintenance is required?
A3: Regular oil replacement, filter inspection, and pressure monitoring are recommended.
