Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/31
Document: HA10VS031Series.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Axial Piston Pump |
Power: |
Hydraulic |
Standard Or Nonstandard: |
Standard |
Fuel: |
Hydraulic |
Application: |
Maritime,Metering,Cryogenic,industrial,Agriculture/RV/marine/Yachts/boat/caravan/water System |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural,blue/white/black/green |
Theory: |
Axial Piston Pump |
Power: |
Hydraulic |
Standard Or Nonstandard: |
Standard |
Fuel: |
Hydraulic |
Application: |
Maritime,Metering,Cryogenic,industrial,Agriculture/RV/marine/Yachts/boat/caravan/water System |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural,blue/white/black/green |

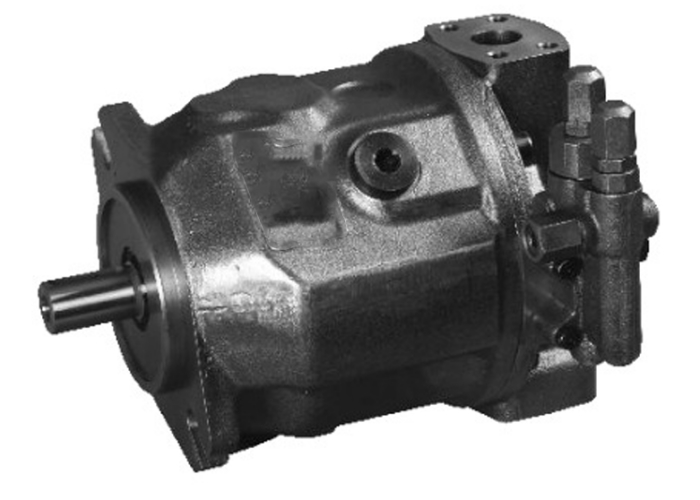

The HA10VS0/31 Series axial piston pump is a high-performance hydraulic pump designed for demanding industrial applications. With a nominal pressure of 280 bar and maximum pressure of 350 bar, this pump delivers reliable performance in various operating conditions.
| Attribute | Value |
|---|---|
| Theory | Axial Piston Pump |
| Power | Hydraulic |
| Standard or Nonstandard | Standard |
| Fuel | Hydraulic |
| Material | Cast Iron |
| Color Options | Blue, Black, Natural, Green, or custom colors available |
Maritime, Metering, Cryogenic systems, Industrial machinery, Agriculture/RV/marine/Yachts/boat/caravan water systems
| Size | NG | 18 | 28 | 45 | 71 | 100 | 140 |
|---|---|---|---|---|---|---|
| Displacement Vgmax (cm³) | 18 | 28 | 45 | 71 | 100 | 140 |
| Max. speed at Vg max n_nom (rpm) | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
| Flow rate at n_nom and Vgmax qvmax (l/min) | 59 | 64 | 117 | 150 | 200 | 252 |
| Power Δp = 280bar at n_nom and Vgmax p_max (kW) | 27.7 | 39 | 55 | 73 | 93 | 118 |
The HA10VS0/31 series axial piston pump adopts a swash plate structure that enables stepless volume adjustment by changing the swash plate inclination angle. This innovative design allows for:
Available in sizes from 18 to 140, with weights ranging from 12.9 kg (without thru-drive shaft) to 74.4 kg (with thru-drive shaft), depending on model configuration.
