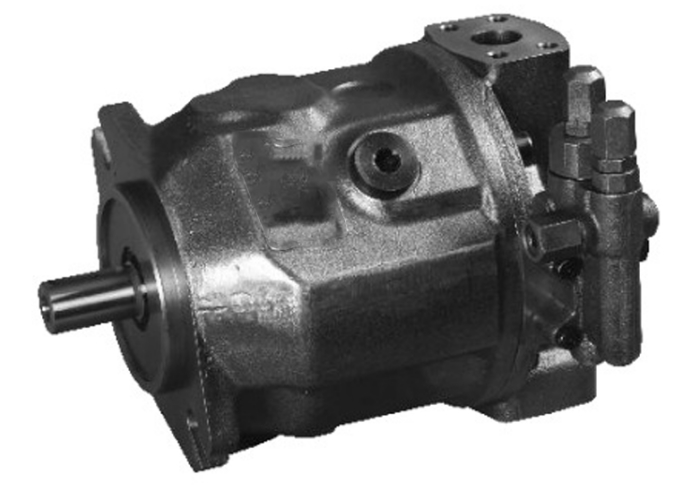

HA10VS0/31 Series Axial Piston Fan Pump for Marine Power Systems

The HA10VS0/31 Series axial piston fan pump is a high-performance hydraulic pump designed exclusively for marine power systems. With a nominal pressure of 280 bar and a maximum pressure of 350 bar, this pump delivers consistent and reliable hydraulic performance in demanding marine environments. Its robust swash plate design and variable displacement capabilities make it ideal for precise flow control and energy-efficient operation on vessels, yachts, and shipboard machinery.

Applications

• Marine Power Systems: Provides primary hydraulic power for propulsion, steering, and auxiliary systems on ships and yachts.

• Shipboard Machinery: Drives winches, cranes, and pumps with high reliability.

• Auxiliary Hydraulic Equipment: Supports stabilizers, thrusters, and other hydraulic systems on marine vessels.

This pump is specifically designed for marine applications and should be used only in these environments for optimal performance and safety.

Advantages

• Exclusive Marine Design: Engineered to meet the unique demands of maritime hydraulic systems.

• Variable Displacement: Stepless flow adjustment via swash plate inclination allows precise control of hydraulic flow and system efficiency.

• High Pressure Capacity: Rated pressure 280 bar, maximum pressure 350 bar, suitable for heavy-duty marine operations.

• Durable Construction: Cast iron body provides excellent corrosion resistance in marine environments.

• Low Noise Operation: Optimized design reduces vibration and noise onboard vessels.

• Through-Shaft Capability: Supports multi-circuit applications and can withstand axial and radial loads.

Specifications

Manufacturing Process

1. Material Selection: High-strength cast iron for marine corrosion resistance.

2. Precision Machining: Swash plate and piston components are machined to tight tolerances.

3. Heat Treatment: Improves hardness and wear resistance.

4. Assembly and Testing: High-pressure testing ensures reliability in marine conditions.

5. Corrosion Protection: Surface treatment and coating extend service life in saltwater environments.

Usage Instructions

• Fill pump casing with clean hydraulic oil before operation.

• Maintain hydraulic oil cleanliness at NAS level 9 or better.

• Avoid dry running and strong impacts to the pump.

• Ensure secure installation of through-shaft connections.

• Regularly inspect flow, pressure, and oil quality to ensure safe and efficient operation.

After-Sales Service

• Warranty: 12 months covering manufacturing defects.

• Technical Support: Guidance for installation, operation, and troubleshooting.

• Spare Parts: Genuine parts available for fast replacement.

• Repair Services: Global support from experienced marine hydraulic technicians.

FAQ

Q1: Can HA10VS0/31 be used outside marine systems?
A1: No, this pump is specifically designed for marine hydraulic systems and should be used only in these applications.

Q2: How is flow adjusted?
A2: Flow is adjusted steplessly by changing the swash plate inclination, allowing precise hydraulic control.

Q3: Is it corrosion-resistant for saltwater use?
A3: Yes, the cast iron construction and surface treatments provide excellent resistance in marine environments.
