Shandong Keystone Hydraulic Co.,Ltd
Product Details
Place of Origin: China
Brand Name: KERSTERN
Certification: SIO9001
Model Number: HA10VS0/31
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Wooden boxes and cartons
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5,000 units per month
Theory: |
Axial Piston Pump |
Power: |
Hydraulic |
Standard Or Nonstandard: |
Standard |
Fuel: |
Hydraulic |
Application: |
Maritime,Metering,Cryogenic,industrial,Agriculture/RV/marine/Yachts/boat/caravan/water System |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural,blue/white/black/green |
Theory: |
Axial Piston Pump |
Power: |
Hydraulic |
Standard Or Nonstandard: |
Standard |
Fuel: |
Hydraulic |
Application: |
Maritime,Metering,Cryogenic,industrial,Agriculture/RV/marine/Yachts/boat/caravan/water System |
Material: |
Cast Iron |
Color: |
Blue,Black,black Or As You Need.,natural,blue/white/black/green |

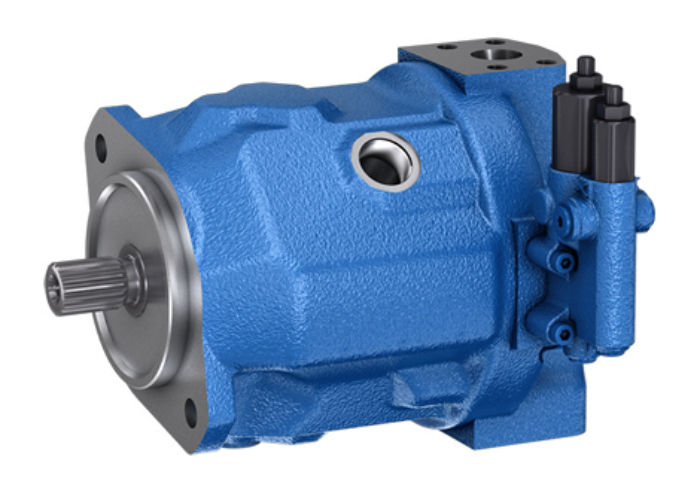

The HA10VS0/31 Series axial piston pump is a high-performance hydraulic pump engineered exclusively for yacht hydraulic systems. Designed for precision and reliability, this pump operates at a nominal pressure of 280 bar and a maximum pressure of 350 bar, delivering consistent performance in demanding marine environments. Its swash plate axial piston design ensures stepless flow control, allowing yacht systems to maintain smooth and efficient hydraulic operations.
Yacht Hydraulic Systems: Steering systems, stabilizers, and deck machinery
Marine Equipment: Hydraulic winches, cranes, and anchor handling systems
Luxury Vessels: Water circulation, lifting platforms, and onboard hydraulic actuators
This pump is specifically optimized for yachts and marine applications and should not be used in unrelated industrial or agricultural systems.
Precision Flow Control: Stepless displacement adjustment via swash plate angle
High Reliability: Cast iron construction ensures long service life and corrosion resistance in marine environments
High Pressure Operation: Rated 280 bar, maximum 350 bar, suitable for demanding yacht systems
Flexible Performance: Adjustable flow rate to match system requirements and optimize energy efficiency
Compact and Lightweight: Designed for marine applications where space and weight are critical
| Parameter | Value |
|---|---|
| Model | HA10VS0/31 |
| Pump Type | Axial Piston Pump |
| Nominal Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Displacement Range (Vg max) | 18–140 cm³ (depends on model) |
| Maximum Speed (n_nom rpm) | 1800–3300 rpm (depends on model) |
| Flow Rate (qv max l/min) | 59–252 l/min (depends on model) |
| Power at 280 bar (kW) | 27.7–118 kW (depends on model) |
| Material | Cast Iron |
| Mounting Interface | ISO standard flange, SAE metric connections |
| Weight | 12.9–74.4 kg (depending on configuration) |
Material Selection: High-strength cast iron for durability and corrosion resistance
Precision Machining: Swash plate and piston components for accurate hydraulic performance
Heat Treatment: Enhances hardness and wear resistance
Assembly & Testing: High-pressure testing ensures performance and reliability
Anti-Corrosion Coating: Protective finish suitable for marine environments
Fill the pump with clean hydraulic oil before operation
Ensure hydraulic oil cleanliness at NAS level 9 or better
Avoid dry running and strong impacts during transport or installation
Regularly inspect oil filters and system connections
Maintain proper swash plate adjustments for optimal flow control
Warranty: 12 months against manufacturing defects
Technical Support: Installation, commissioning, and operation guidance
Spare Parts: Genuine replacement parts available for quick service
Repair Services: Professional support for marine hydraulic systems
Q1: Can this pump be used outside yachts?
A1: No, it is specifically designed for yacht hydraulic systems. Other industrial applications are not recommended.
Q2: Is the pump’s displacement adjustable?
A2: Yes, stepless flow adjustment is achieved by changing the swash plate angle.
Q3: What type of hydraulic oil should be used?
A3: Use clean, marine-grade hydraulic oil meeting ISO VG46 or VG68 specifications.
