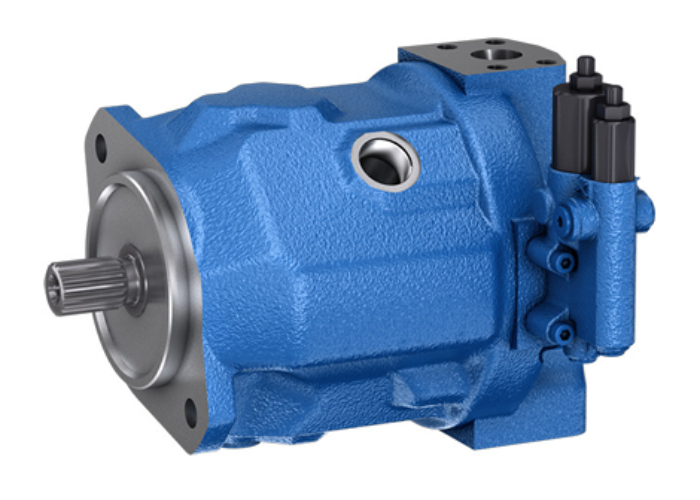

HA10VS0/31 Series Axial Piston Fan Pump for Precision Metering Equipment

The HA10VS0/31 Series Axial Piston Pump is a high-precision hydraulic pump engineered for precision metering equipment. Designed with a swash plate axial piston structure, this pump provides stepless volume adjustment and delivers consistent, accurate flow under high-pressure conditions. With a rated pressure of 280 bar, it ensures reliable performance in demanding industrial applications, where precise hydraulic control is critical.

Applications

• Precision Metering Equipment: Ideal for laboratory dosing systems, chemical injection systems, and industrial fluid metering.

• Industrial Process Control: Suitable for applications requiring accurate, stable hydraulic flow and minimal pulsation.

• Research & Development Systems: Ensures precise control of fluids in testing and calibration equipment.

Note: This pump is specifically designed for precision metering equipment and not recommended for general-purpose hydraulic systems.

Advantages

• High Precision Control: Swash plate design allows precise adjustment of piston stroke for accurate flow.

• Stepless Volume Adjustment: Flow can be fine-tuned to match system requirements, enhancing efficiency.

• High Pressure Rating: Rated at 280 bar, providing stable performance in high-pressure environments.

• Durable Construction: Cast iron housing ensures long service life and corrosion resistance.

• Compact and Flexible: Suitable for integration into specialized metering machinery with space constraints.

Specifications

Manufacturing Process

1. Material Selection: High-strength cast iron for durability and corrosion resistance.

2. Precision Machining: Swash plate and pistons are machined to tight tolerances for accurate flow.

3. Heat Treatment: Enhances hardness and wear resistance.

4. Assembly & Testing: Each pump is assembled and tested under rated pressure for accuracy and performance.

5. Protective Coating: Anti-corrosion treatment ensures long-term reliability.

Usage Instructions

• Fill the pump casing with clean hydraulic fluid before operation.

• Maintain hydraulic oil cleanliness at NAS level ≤ 9.

• Avoid running the pump dry or subjecting it to strong mechanical shocks.

• Perform regular checks of flow and pressure to ensure precise operation.

• Ensure secure mounting and proper connection of shafts and flanges.

After-Sales Service

• Warranty: 12 months from the date of purchase.

• Technical Support: Guidance for installation, operation, and troubleshooting.

• Spare Parts: Genuine replacement parts available for fast maintenance.

• Repair Services: Expert technicians available for service and calibration support.

FAQ

Q1: Can this pump be used in general hydraulic systems?
A1: No, the HA10VS0/31 is specifically designed for precision metering applications and is not recommended for standard hydraulic machinery.

Q2: Is the pump flow adjustable?
A2: Yes, the swash plate allows stepless adjustment of the piston stroke to precisely control flow.

Q3: What fluid types are compatible?
A3: Suitable for hydraulic oils meeting standard specifications for clean, non-corrosive fluids used in precision metering equipment.
